Description:

When it comes to your yard, second best just won’t cut it. That’s why the Toro TimeCutter MAX is designed to take down grass like a pro and leave you feeling like a million bucks when you’re done. With features like an unflinching heavy duty IronForged deck and fully floating MyRIDE® Suspension, you get the toughness and precision that comes with over a century of pro-level engineering and a shockingly smooth, back-saving ride and save a ridiculous amount of time cutting.

Features:

• Patented MyRIDE® Suspension sits isolated from the frame to save your back and accelerate your mow.
• Over 100 years of Pro DNA course through the veins of every mower we build.

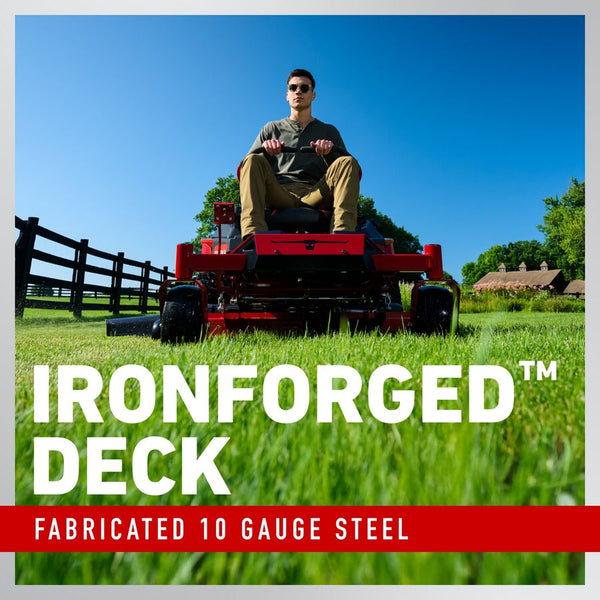

• Its heavy duty steel IronForged® Deck doesn’t flinch no matter what you throw its way.

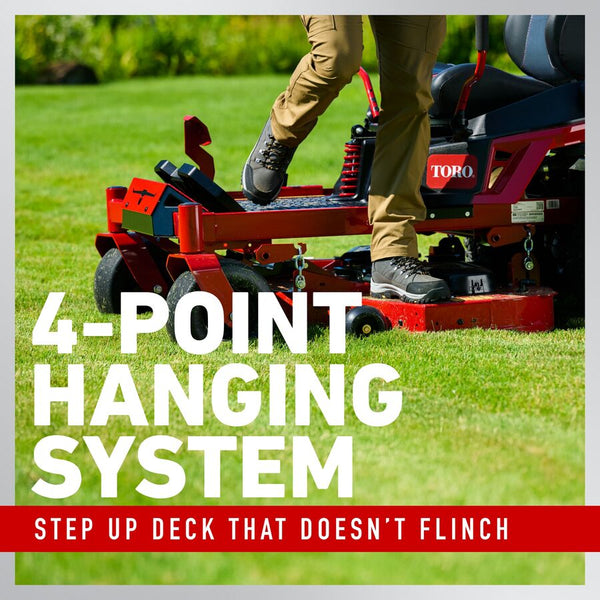

• The four-point deck hanging system doesn’t flinch under your feet when you get on or off the mower.
• Beefy hybrid-tread rear tires give you maximum traction without tearing up your turf.
• Spray blocking fenders keep tire spray off your engine, and more importantly, you.
• Automotive-style fuel fill means less mess as you top off the huge 5 gallon tank.
• The integrated drain hose makes oil changes effortless and takes the mess out of maintenance.
• Built upon an ultra-strong, fully tubular steel frame, this beast is rock solid and ready to ride.
• The same drop pin height of cut used by the pros. So you can adjust to the perfect height, quickly.
• Download the MyToro app from your mobile device’s app store for easy access to product resources, including manuals, how-to’s, and more

Specifications:

• Product Type: Zero-Turn Mower
• Product Use: Residential
• Start Type: Electric
• Weight: 684 lbs / 310.3 kg
• Box Dimensions: 82.0 in. x 57.0 in. x 35.0 in. (208.3 cm x 144.8 cm x 88.9 cm)
• Hour Meter: Optional
• Fuel Type: Gasoline
• Fuel Capacity: 5 gal. / 18.9 L / 20 Qt.
• Terrain Type: Flat with Obstacles
• Tow Capacity: Combined total of machine, user, and towed weight must not exceed 1,000 lbs
• CARB Compliant: Not CARB Compliant

Engine & Transmission

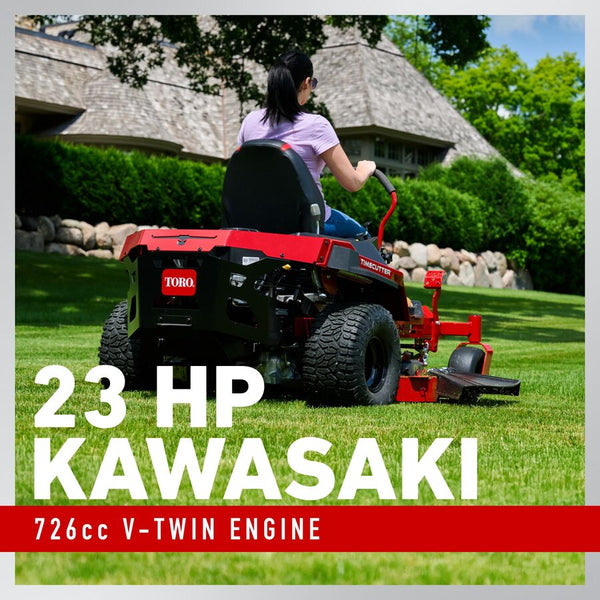

• Engine Brand: Kawasaki
• Engine Model: FR691V
• Engine Displacement: 726 cc
• Engine Horsepower: 23 hp
• Engine Power: 17.2 kW
• Air Filter: Standard Kawasaki Air Cleaner
• Crankshaft: 1″ (25 mm) w/ Steel Protector
• Cooling System: Air Cooled
• Recommended Oil Type: 10W-30
• Drive Type: Rear-Wheel Drive
• Transmission: Dual Hydrostatic HG-EZT2200
• Hydraulic Drive: Standard
• Drive System: HYDRO
• Forward Speed (Mowing & Transport): Up to 7.0 mph / 11.2 kph

Deck & Cutting System

• Deck Size: 50 in / 127 cm
• Deck Design: 10-Gauge IrongForged®
• Deck Material: 10 Gauge Steel
• Blade Tip Speed: 17,600 ft/min / 5,364 m/min
• Number of Blades: 3
• Cutter System: Steel Cutting Blade
• Discharge Chute: Side
• Height of Cut: 1.5 – 5.0 in. / 3.8 – 12.7 cm
• Foot Operated Height of Cut: Standard
• Anti-Scalp Wheels: 3 Standard
• Washout Port: Standard
• Bagger Capacity: 4.9 bushels

Operator Features

• Seat: 19″ Gaming Style
• Armrests: Optional
• Comfort Platform: MyRIDE® Suspension System
• Steering Controls: Twin Lever
• Steering Dampeners: Standard Dampers
• Cup Holder: Standard
• Lighting: Optional
• Hitch Bracket: Standard

Frame & Tires

• Frame: 3 in. x 1.5 in. (7.6 cm x 3.8 cm) Steel Tubing
• Carrier Frame: 3 in. x 1.5 in. x 0.120 in. Tubular Steel
• Caster Tires: 12 in. x 6 in. – 5 in. Pneumatic
• Drive Tires: 20 in. x 10 in. – 8 in.
• Tires: 12 in. x 6 in. Front / 20 in. x 11 in. Rear

Spindles & Maintenance

• Spindle Bearings: Maintenance-free
• Spindle Housing: Cast-Aluminum
• Greasable Bearings: Yes
