Description:

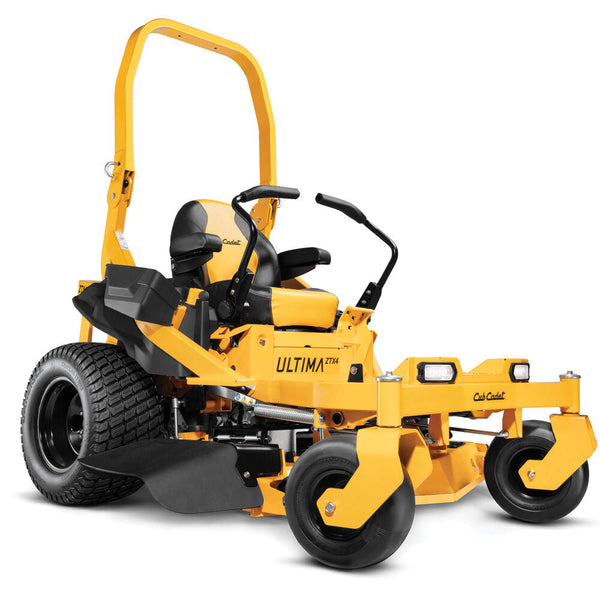

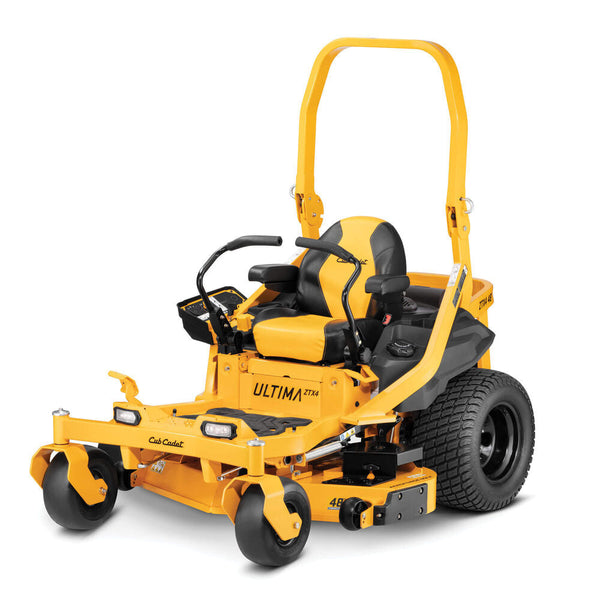

The Cub Cadet® Ultima Series ZTX4 48 48-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.
Features:
- 24 HP* 725cc Kohler® KT-Pro 7000 series V-twin OHV engine built for reliable starting and a quiet operation
- Dual hydrostatic transmissions allow for up to 8 MPH forward (up to 3.5 MPH reverse) ground speeds
- A high-strength, continuous 1.5 in. x 3 in. tubular steel frame with fully e-coat lower frame and corrosion defense system, a multi-step process that electronically applies corrosion resistance with meticulous care to help protect against wear and tear
- 48 in. AeroForce™ Max 10-Gauge reinforced fabricated steel cutting deck with maintenance spindles smooth arc triple-blades, cut overlap and deep dome deck design that is designed to provide excellent results, mows a wide area of grass is rust-resistant and helps provide your lawn with a clean, premium cut
- Zero-Turn Mower
Specifications:
Engine
- Brand: Kohler®
- Model: Pro 7000 series (KT735)
- Displacement: 725cc
- Output: 24 HP
- Starter Type: Electric
- Fuel Tank Capacity: 5.5 gal. US (20.82 L)
- Cylinders: Twin
- Start Type: Ignition Key
- Oil Capacity: 2.0 qts. US (1.89 L)
- Lubrication: Fully pressurized
- Charging System: 12 amp regulated
- Fuel Gauge: No
- Governor: Mechanical
- Choke: Separate Choke
- Air Filter: Dual element
- Oil Filter: Yes
- Fuel Delivery: Carburetor
Battery
- Capacity: 210 CCA
- Type: AGM (Absorbent Glass Mat)
- Voltage: 12V
Drive System
- Transmission: Hydro-Gear ZT 3100
- Forward Speed: 8 MPH /12.9 km/h
- Reverse Speed: 3.5 MPH / 5.6 km/h
- Type: Hydrostatic
Cutting Deck
- Width: 48 in
- Wash Port: No
- Material: 10-gauge steel
- Engagement (PTO): Electric
- Construction: Fabricated
- Blades: Three
- Lift: Foot pedal with Dial Adjust
- Height Range: 1″ – 4.75″
- Anti-Scalping: Three gauge wheels
- Positions: 17
Chassis
- Frame: 1.5″ x 3″ tubular steel
- Turning Radius: 0°
- ROPS: Yes
- Rear Tow Hitch: Yes
- Corrosion Protection: Yes
Controls
- Cruise Control: No
- Brakes: Disc
- Steering Control: Lap Bars
Comfort
- Seat: 20″ high back
- Armrests: Yes
- Seat Adjustment: Lever
- Front Caster Suspension: No
Wheels
- Rear Tires: 22″x 12″-12″
- Front Tires: 13″x 6.5″-6″
- Tread: Turf Master / Multi Trac
Specifications
- Series: Ultima Series™ ZTX
- Hour Meter: Yes
- Mulch Kit: Available separately
- Headlights: Dual-LED
- Cup Holder: Yes
- Operator Presence System: Yes
- Parking Brake: Lap Bar Integrated
Model & Warranty
- Model Number: 47TSAAA6A10
- Residential Warranty: 4-year 800 hours
- Frame Warranty: Lifetime limited
- Deck Shell Warranty: Lifetime limited
- Commercial Warranty: 4-year 800 hours
