CUB CADET XT1-LT50 FAB 13AQA1TLA10

CUB CADET XT1-LT50 FAB 13AQA1TLA10

CUB CADET XT1-LT50 FAB 13AQA1TLA10

$662.13

SET UP AND PREP FEES MAY APPLY

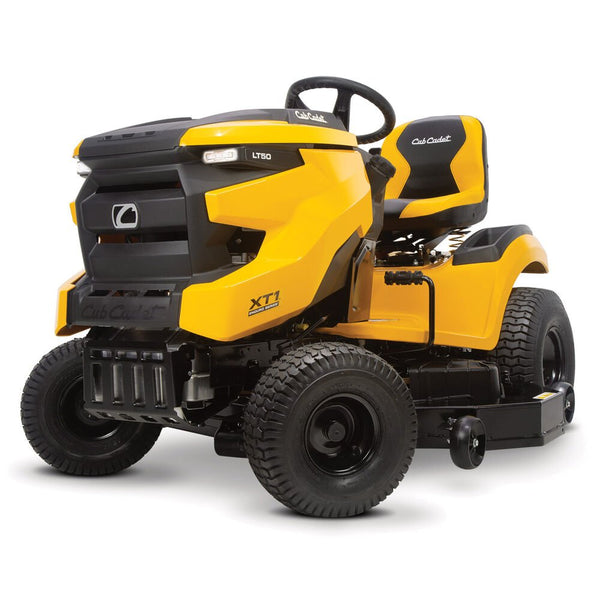

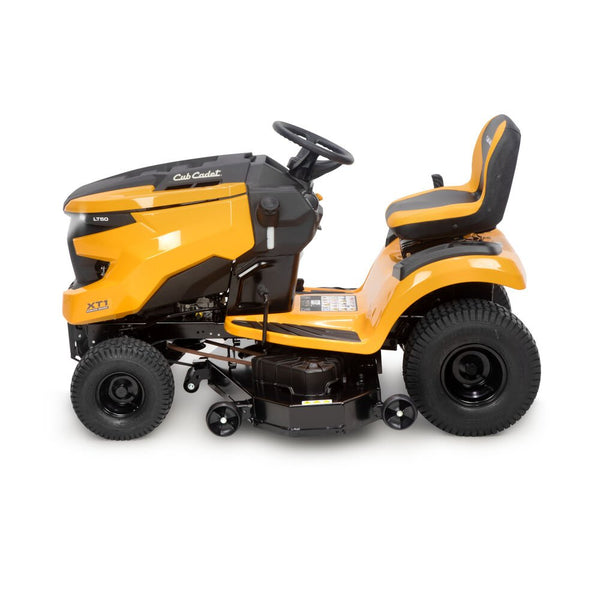

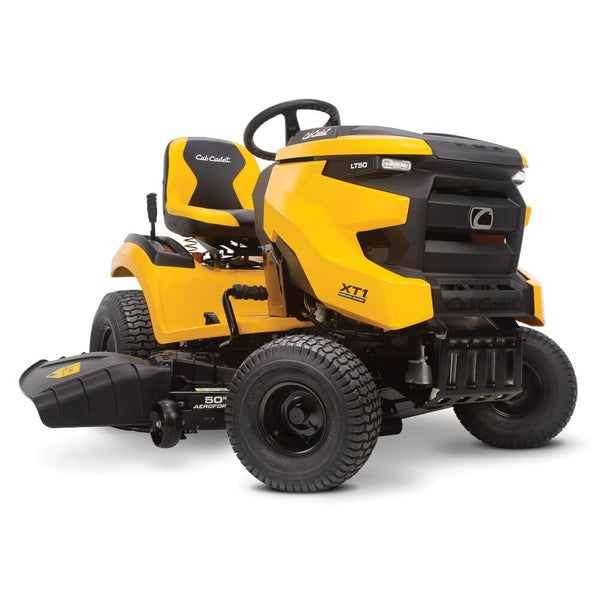

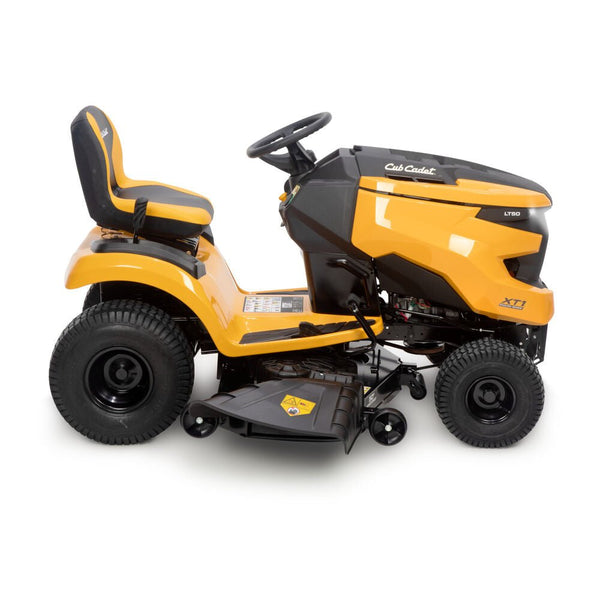

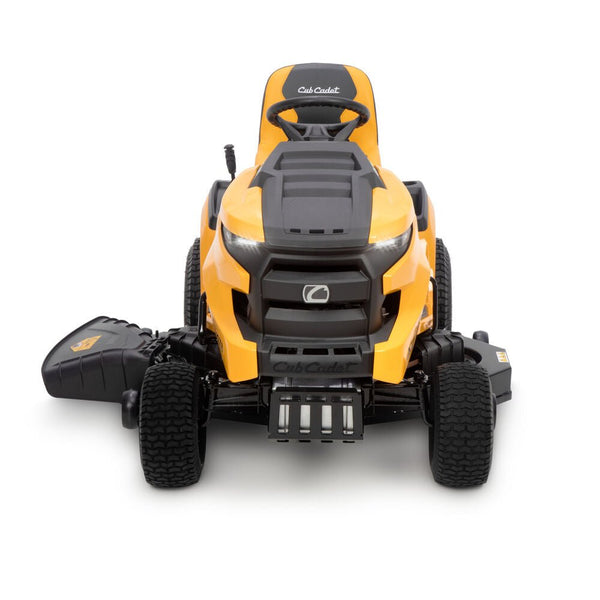

The Cub Cadet XT1 LT50 FAB is powered by a 24 hp KOHLER 7000 Series twin cylinder engine.
50-inch fabricated, 11-gauge, triple-blade AeroForce(TM) deck design that optimizes airflow and maximizes suction to reduce clumping during discharge and improves bagging performance while delivering the pristine Cub Cadet Signature Cut(TM).
Optimized steering system for responsive handling gives a 16-inch turn radius a zero-turn feel.
3-year/no hour limit warranty (includes powertrain) and 5-year chassis and front axle unlimited hours/limited lifetime fabricated deck shell.
Ideal for mowing up 2-4 acres of mostly flat terrain and a few obstacles.

Engine

Engine Brand: Kohler®
Engine Model: KT724
Engine Displacement: 747cc
Engine Output: 24 HP
Fuel Tank Capacity: 3 gal.
Cylinders/Material: Twin
Engine Start: Key
Engine Oil Capacity: 2 qt.
Lubrication: Fully pressurized
Battery: 12V 230 cold crank amps AGM
Charging System: 12 amp regulated
Fuel Gauge: Fuel sight window
Governor: Manual
Choke: Choke-a-matic
Air Filter: Dual element
Oil Filter: Yes

Drive System

Transmission: Hydrostatic, foot
Forward Speed: 5.5 MPH
Reverse Speed: 3 MPH
Rear Axle : 3/4″ w/dual PM steel drive hubs
Transmission Housing: Cast aluminum
Transmission Type: Tuff Torq K46
Engine to Transmission: Heavy-duty belt

Cutting Deck

Deck Cutting Width: 50″
Cutting Modes: Discharge/mulch/bagging
Deck Wash: Yes
Deck Material: Steel, 11-gauge
Deck Attach/Removal: QuickAttach™ (no tools required)
Deck Engagement (PTO): Electronic fingertip engagement
Deck Construction: Fabricated
Spindle Construction: 3/4″ with steel cap and Triple Lip Sealed
Blade(s): Triple Blades
Deck Lift: Lever
Cutting Height Range: 1″ – 4″
Anti-Scalping: 2 Ball/2 Ball/Nose Roller
Deck Positions: 12-position

Chassis

Frame: Fully robotically-welded frame with new e-coating corrosion defense system
Front Axle(s): Cast iron
Turning Radius: 16″
Front Tires: 15″ x 6″ sleeve bearing
Rear Tires: 20″ x 8″
Tire Tread: Turf Saver
Bumper: Optional
Rear Tow Hitch: Included
Corrosion Protection: Yes

Controls

Cruise Control: Included
Brakes: Disc
Steering Wheel Control: Manual sector and pinion
Headlight(s): 2 – LED
Display:

Comfort

Seat Type: 15″ high-back seat
Seat Suspension: Seat spring
Seat Adjustment: Lever
Floor Mats: Rubber

Dimensions

Dimensions: L/W/H 68″/60″/42.5″
Weight (approx.): 500 lbs.
Wheelbase: 47″

Additional Specifications

Mulch Kit: Optional
Discharge Chute: Included
Cup Holder: Included
Operator Presence System: Included
Bagger: Optional
Model Number: 13AQA1TLA10

Warranty

Warranty: 3-year/unlimited hour warranty
Frame Warranty: 5-year/unlimited hour warranty
Front Axle Warranty: 5-year/unlimited hour warranty
Deck Shell Warranty: Limited lifetime warranty

AIR FILTER: 32 883 09-S1 OR 490-200-K054
OIL FILTER: 12 050 01-S
ENGINE OIL: 25 357 65-S OR 490-000-C044
FUEL FILTER: 25 050 22-S1
TRANS FLUID: TT-187Q0899000
SPARK PLUG: 25 132 23-S OR RC12YC
DECK BELT: 954-04077A
DRIVE BELT: 954-05027B OR 490-501-C061
BLADES: 742P05094 OR SET 490-110-C193
XTREME BLADE: 742P05094-X OR SET 490-110-C204
IGNITION KEY: 925-1745A
