ZTX5 60
SET UP AND PREP FEES MAY APPLY

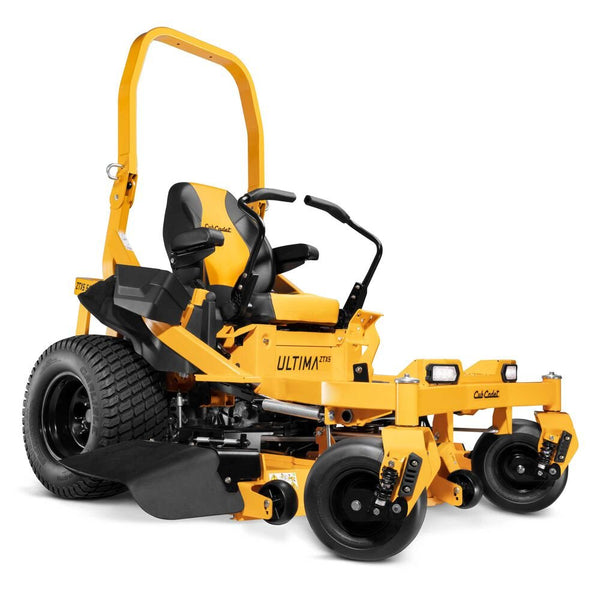

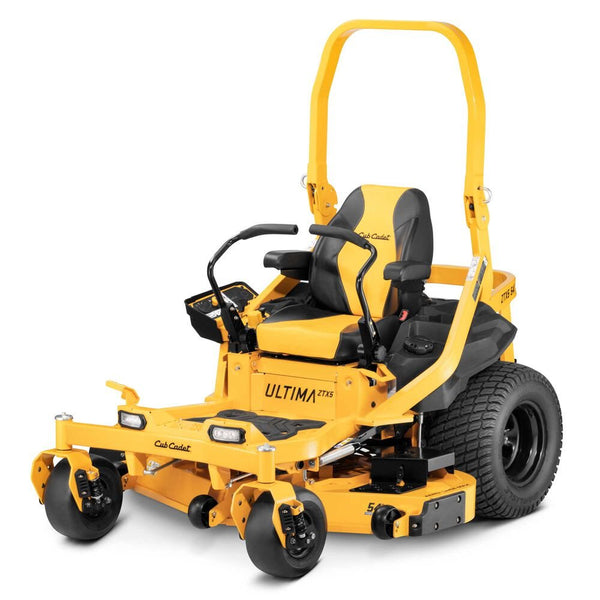

The Cub Cadet® Ultima Series ZTX5 60 60-in. 24 HP* Zero-Turn Lawn Mower with AeroForce™ Max Reinforced Fabricated Deck is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. Features 10-gauge reinforced fabricated steel with low maintenance spindles, smooth arc triple-blades, cut overlap and deep dome deck design allowing you to mow a wide area of grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish.
- Thoughtfully designed 1.5 in. x 3 in. tubular steel frame provides optimal strength and rigidity while allowing accessibility for easy routine maintenance
- Equipped with a powerful 24 HP Kawasaki® FS Series V-Twin OHV engine for reliable starting and exceptionally smooth, quiet operation.
- Commercial-grade dual Hydro-Gear® ZT-3200 hydrostatic rear-wheel transmissions for quick and effortless up to 8.5 MPH forward and 3.5 MPH reverse zero-turn controlled ground speeds.
Engine
-
Engine Brand: Kawasaki®
-
Engine Model: FS Series
-
Engine Model Number: 730V
-
Engine Displacement: 726cc
-
Engine Output: 24HP
-
Starter Type: Electric
-
Fuel Tank Capacity: 5.5 gal. US (20.82 L)
-
Cylinders: Twin
-
Engine Start: Ignition Key
-
Engine Oil Capacity: 2.1 qt US ( 2 L)
-
Lubrication: Fully pressurized
-
Charging System: 12 amp regulated
-
Fuel Gauge: Yes
-
Governor: Mechanical
-
Choke: Separate Choke
-
Air Filter: Single element
-
Oil Filter: Yes
-
Fuel Delivery: Carburetor
Battery
-
Battery: 210 CCA
-
Battery Type: AGM (Absorbent Glass Mat)
-
Battery Voltage: 12V
Drive System
-
Transmission: Hydro-Gear ZT 3200
-
Forward Speed: 8.5 MPH
-
Reverse Speed: 3.5 MPH
-
Drive System: Hydrostatic
Cutting Deck
-
Deck Cutting Width: 60“
-
Deck Wash: No
-
Deck Material: 10-gauge steel with 2-gauge reinforcement
-
Deck Engagement: (PTO) Electric
-
Deck Construction: Fabricated
-
Blade(s): Three
-
Deck Lift: Foot pedal with Dial Adjust
-
Cutting Height Range: 1″ – 4.75″
-
Anti-Scalping: Three gauge wheels
-
Deck Positions: 17
Warranty
-
Warranty: 4-year 800 hours
-
Frame Warranty: Lifetime Limited
-
Deck Shell Warranty: Lifetime limited
-
Commercial Warranty: 4-year 800 hours
Chassis
-
Frame: 1.5″ x 3″ tubular steel
-
Turning Radius: 0°
-
ROPS: Yes
-
Rear Tow Hitch: Yes
-
Corrosion Protection: Yes
Controls
-
Cruise Control: No
-
Steering Control: Lap Bars
Comfort
-
Seat Type: 24″ high back
-
Armrests: Yes
-
Seat Adjustment: Lever
-
Front Caster Suspension: Yes
Wheels
-
Rear Tires: 23″x 12″-12″
-
Front Tires: 13″x 6.5″-6″
Additional Specifications
-
Hour Meter: Yes
-
Mulch Kit: Available separately
-
Headlight(s:) Dual-LED
-
Cup Holder: Yes
-
Operator Presence System: Yes
-
Parking Brake: Lap Bar Integrated
-
Model Number: 47AKAAA8A10
