Z1 42IP
The Ultima Series Z1 42IP 42-in. 547cc Zero-Turn Lawn Mower With IntelliPOWER® is designed to deliver a premium cut with few clumps and stragglers, fine clippings and evenness. IntelliPOWER® Technology delivers up to 18% more available power*, resulting in less bogging down when mowing in challenging conditions like tall, thick, or wet grass. Dual hydrostatic transmissions engineered for quick ground speeds that leaves your yard with a professional-quality finish. A continuous tubular steel frame with fully e-coated corrosion defense system designed to help protect against wear and tear.

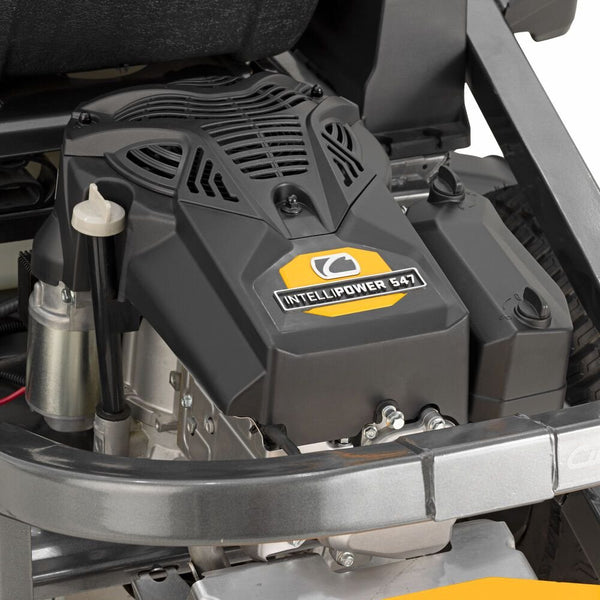

Engine
-
Engine Brand: Cub Cadet®
-
Engine Model: IntelliPOWER
-
Engine Model Number: AX90Z0
-
Engine Displacement: 547cc
- Engine Output:
-
Starter Type: Electric
-
Fuel Tank Capacity: 3.5 gal. US (13.25 L)
-
Cylinders: Single
-
Engine Start: Ignition Key
-
Engine Oil Capacity: 1.8 qts. US (1.7 L)
-
Lubrication: Fully pressurized
-
Charging System: 12 amp regulated
-
Fuel Gauge: No
-
Governor: Electronic
-
Choke: Electronic
-
Air Filter: Dual element
-
Oil Filter: Yes
-
Fuel Delivery: Carburetor
Battery
-
Battery: 210 CCA
-
Battery Type: AGM (Absorbent Glass Mat)
-
Battery Voltage: 12V
Drive System
-
Transmission: Hydro-Gear EZT 2200
-
Forward Speed: 7 MPH / 11.3 km/h
-
Reverse Speed: 3.5 MPH / 5.6 km/h
-
Drive System: Hydrostatic
Cutting Deck
-
Deck Cutting Width: 42 in
-
Deck Wash: Yes
-
Deck Material: 13-gauge steel
-
Deck Engagement: (PTO) Electric
-
Deck Construction: Stamped
-
Blade(s): Two
-
Deck Lift: Foot pedal with Dial Adjust
-
Cutting Height Range: 1” – 4.5”
-
Anti-Scalping: Two gauge wheels
-
Deck Positions: 15
Warranty
-
Residential Warranty: 3-year unlimited hours
-
Frame Warranty: Lifetime Limited
-
Deck Shell Warranty: 3 Year Limited
Chassis
-
Frame: 2” x 2” tubular steel
-
Turning Radius: 0°
-
ROPS: No
-
Rear Tow Hitch: No
-
Corrosion Protection: Yes
Controls
-
Cruise Control: No
-
Steering Control: Lap Bars
Comfort
-
Seat Type: 18″ high back
-
Armrests: No
-
Seat Adjustment: Knob
Wheels
-
Rear Tires: 20”x 8”-8″
-
Front Tires:11″x 6″-5″
Additional Specifications
-
Hour Meter: No 490-900-C075
-
Headlight(s): No
-
Cup Holder: Yes
-
Operator Presence System: Yes
-
Parking Brake: Lap Bar Integrated
-
Model Number: 17RLEACS010
