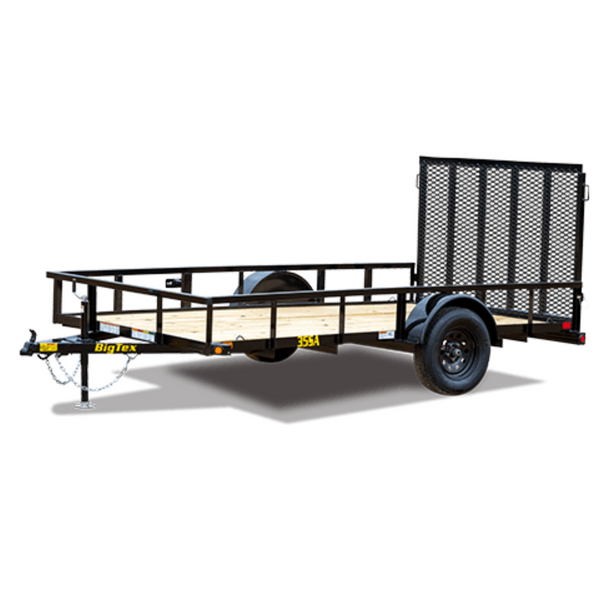

Big Tex Single Axle Utility Trailer | 35SA

$828.75

Model

Quantity

	Standard Feature	Available Options
Axles	3,500# Premium, Cambered Axle with Quick-Lubricating Hubs
Brakes	Brake Flanges for Easy Brake Addition	Electric Brakes w/ Complete Break-Away Kit
Suspension	Multi-Leaf Slipper Spring
Coupler	2" A-Frame	2" Forged Coupler
Safety Chains	1/4" Grd. 30 w/ Safety Latch Hook (2 ea)

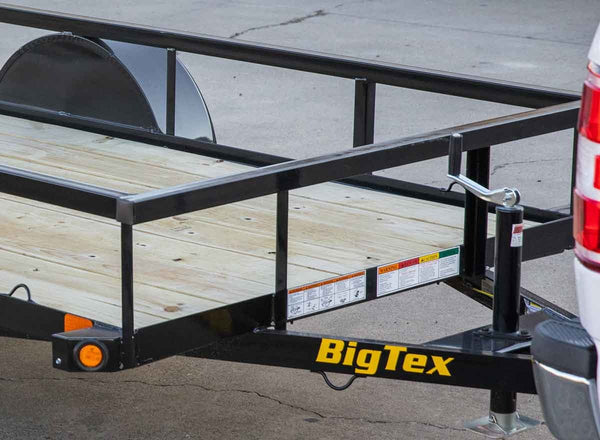

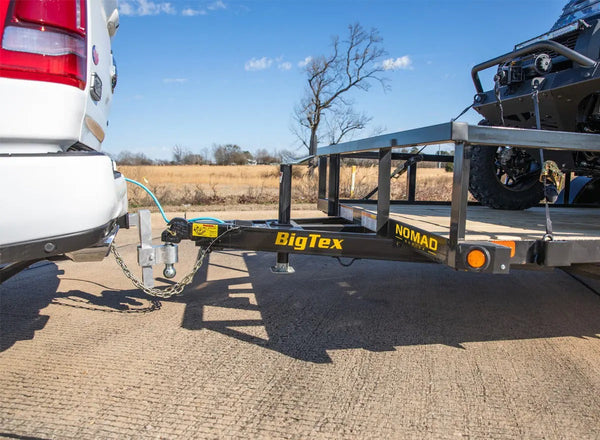

Jack	2,000# Top Wind, Set-Back Jack with Removable Sand Foot	2,000# Fold-Up Jack
Frame	3" x 2" x 3/16" Angle
Cross-Members	3” x 2” x 3/16” Angle
Floor	Treated Pine Floor	Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
Fenders	9" x 32" Rolled Formed w/ Back

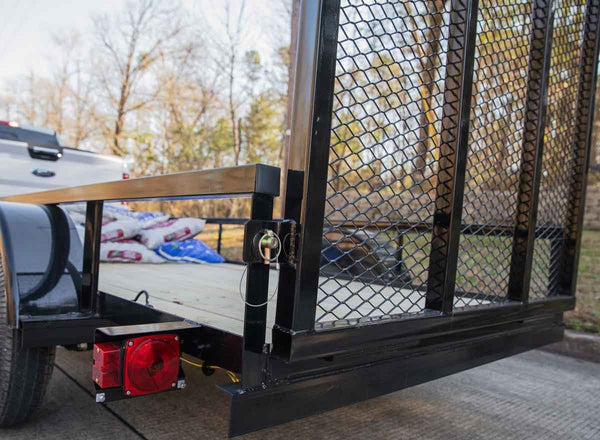

Ramps	4' Tall 3-Way Ramp Gate w/ Coil Spring Assist	4' Slide-In Angle Ramps4' Tall Bi-Fold Rear Ramp Gate w/ Coil Spring Assist
Stake Pockets		Additional Stake Pockets (Each)
Trailer Plug	4-Way Flat w/ Loom
Lights	L.E.D. D.O.T. Stop, Tail, Turn & Clearance
Wiring	Grommet-Mounted Lifetime L.E.D. Lighting

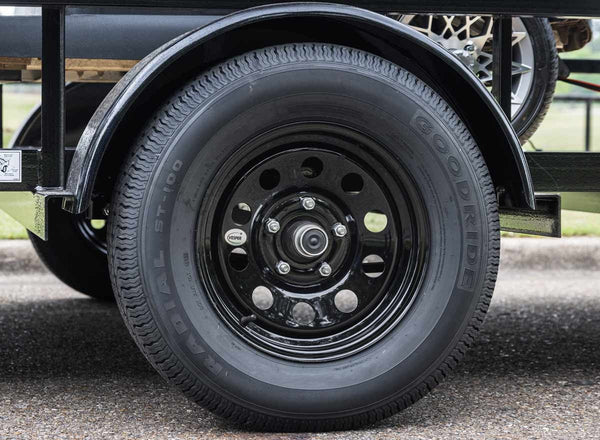

Tires	ST205/75R-15 Load Range C
Bolt Pattern	5 Bolt
Spare Mount	Side Spare Tire Mount
Paint Type	Professional Finish w/ Primer Standard
Paint Color	Black
Tie-Downs	(4) Tie Down Loops Inside Bed	Additional Tie Loops
Sides	17" Tall Open sides with 2” Angle uprights and 2" x 2" Square Tubing Top Rail	2' High Sides (Open, Total Height with Top Rail)3’ High Sides (Open, total height with Top Rail)4’ High Sides (Open, total height with Top Rail)Car Hauler Style (No Side Rails)Enclose Sides w/ Expanded Metal (Per Square Foot)Enclose Sides w/ Sheet Metal (Per Square Foot)

Models & Dimensions

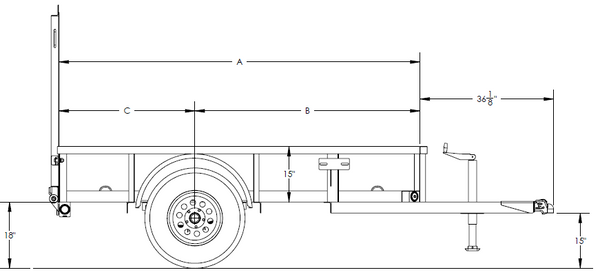

Model	Pull Type	GVWR	GAWR (Ea. Axle)	Empty Weight	Cargo Capacity	Bed Length	Bed Width	A	B	C	Tongue Length
35SA-10	Bumperpull	2995 lbs	3500 lbs	893 lbs	2102 lbs	10'	77"	121-1/2"	73"	48-1/2"	36-1/8"
35SA-12	Bumperpull	2995 lbs	3500 lbs	983 lbs	2012 lbs	12'	77"	145-1/2"	85"	60-1/2"	36-1/8"
35SA-14	Bumperpull	2995 lbs	3500 lbs	1073 lbs	1922 lbs	14'	77"	169-1/2"	97"	72-1/2"	36-1/8"
